$8630/set
Max.sawing range (mm): 400*400*400
Saw belt (mm):5000×41×1.3
Main motor power（kw）:4kw
Voltage (V):380V/50HZ
Main use: sawing various metal materials.
Feature:
1.The machine tool has the functions of automatic clamping, automatic feeding, and automatic sawing (ie, retracting) of the saw after it is mechanically, electrically, and hydraulically matched.
2. Feeding speed, within a given range, can be stepless adjustment.
3.The lifting and positioning of the saw frame is controlled by an ultraviolet proximity switch.
4.The length of feeding material is checked and fixed by grating ruler, and the grating ruler detects the effective range 500mm.

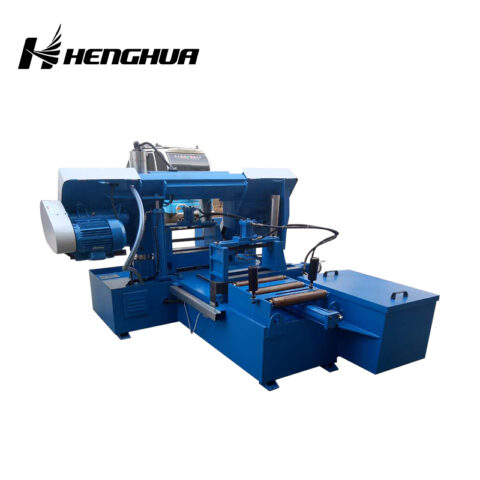

| Model | GZ4240 |
| Max.sawing range (mm) | 400*400*400 |
| Saw belt (mm) | 5000×41×1.3 |
| Sawing wire speed（mm/min） | 27、45、69 |
| Working clamping method | Hydraulic |
| Main motor power（kw） | 4kw |
| Voltage (V) | 380V/50HZ |
| Hydraulic motor power（kw） | 0.75kw |
| Cooling pump power（kw） | 0.09kw |
| Feed speed adjustment mode | Hydraulic/stepless speed |
| Workbench height (mm) | 300mm |
| Dimension (mm) | 2400*2350*1800mm |
| Main drive structure | Worm gear |
| Tensioning method of band saw | Manual |
| clamping system | Hydraulic vice |
| Cleaning of band saw | Wire brush and chip coolant |
