$11000/set
Max.sawing range (mm)：600*600*600
Saw belt (mm)：6300*41*1.3 mm
Main motor power（kw）：5.5KW
Voltage (V)：380V/3 Phase

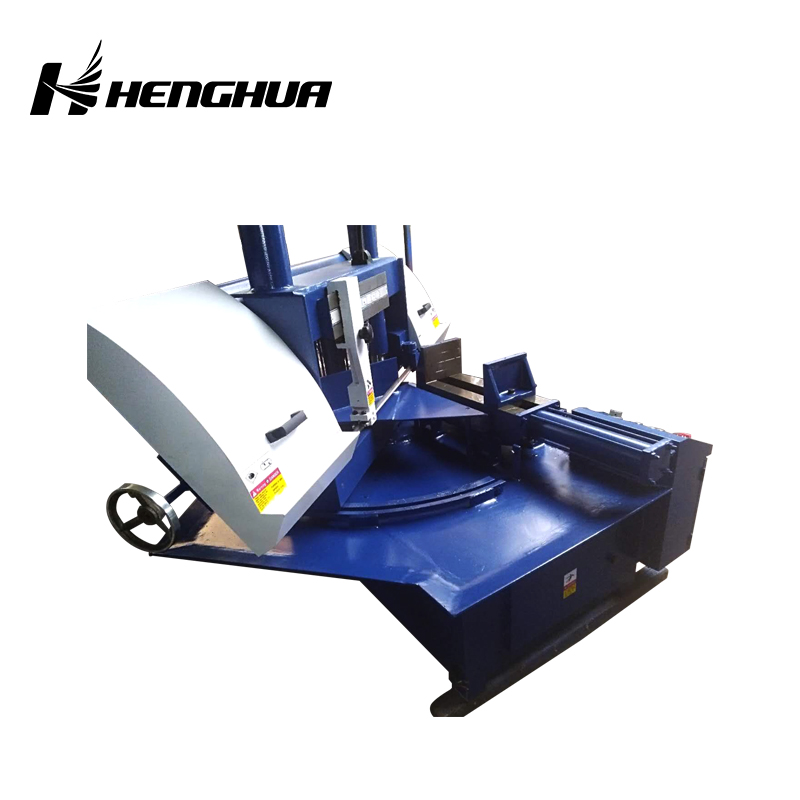

Main use: sawing various metal materials.
1. The machine tool has the functions of automatic feeding, complete sawing and rapid retracting of the saw blade through mechanical, electrical and hydraulic cooperation.
2, The machine feeding adopts the speed control valve to adjust. The speed can carry on the stepless adjustment within the given range.
3, The main moving parts – the rise and fall of the saw frame movement guide, the use of precision rolling linear guide, high precision, good wear resistance.
4, Within 0-60 degrees, it can saw at any angle.
5, Cutting speed, high efficiency, energy saving
6, Hydraulic clamping, easy to grip the material, suitable for cutting mold materials.
7. Saw bed transmission mechanism precision balance correction, reduce vibration to ensure that the saw blade is not easy to break teeth, pull teeth.
| Model | GX4260 |
| Max.sawing range (mm) | 600*600*600 |
| Saw belt (mm) | 6300*41*1.3 mm |
| Cutting Capacity (mm) | 0-45 degree ( two direction angle swivel ) |
| 0 Round: Φ600 Square: 600WX600H | |
| 45 Round: Φ500 Square: 500WX600H | |
| Working clamping method | Hydraulic |
| Main motor power（kw） | 5.5KW |
| Voltage (V) | 380V/3 Phase |
| Hydraulic motor power（kw） | 1.50 |
| Cooling pump power（kw） | 0.09 |
| Feed speed adjustment mode | Hydraulic/stepless speed |
| Workbench height (mm) | 300 |
| Dimension (mm) | 3200*2150*1800 |
| Tensioning method of band saw | Manual |
| clamping system | Hydraulic pressure |
| Cleaning of band saw | Wire brush and chip coolant |
| Weight | 3000kg |
